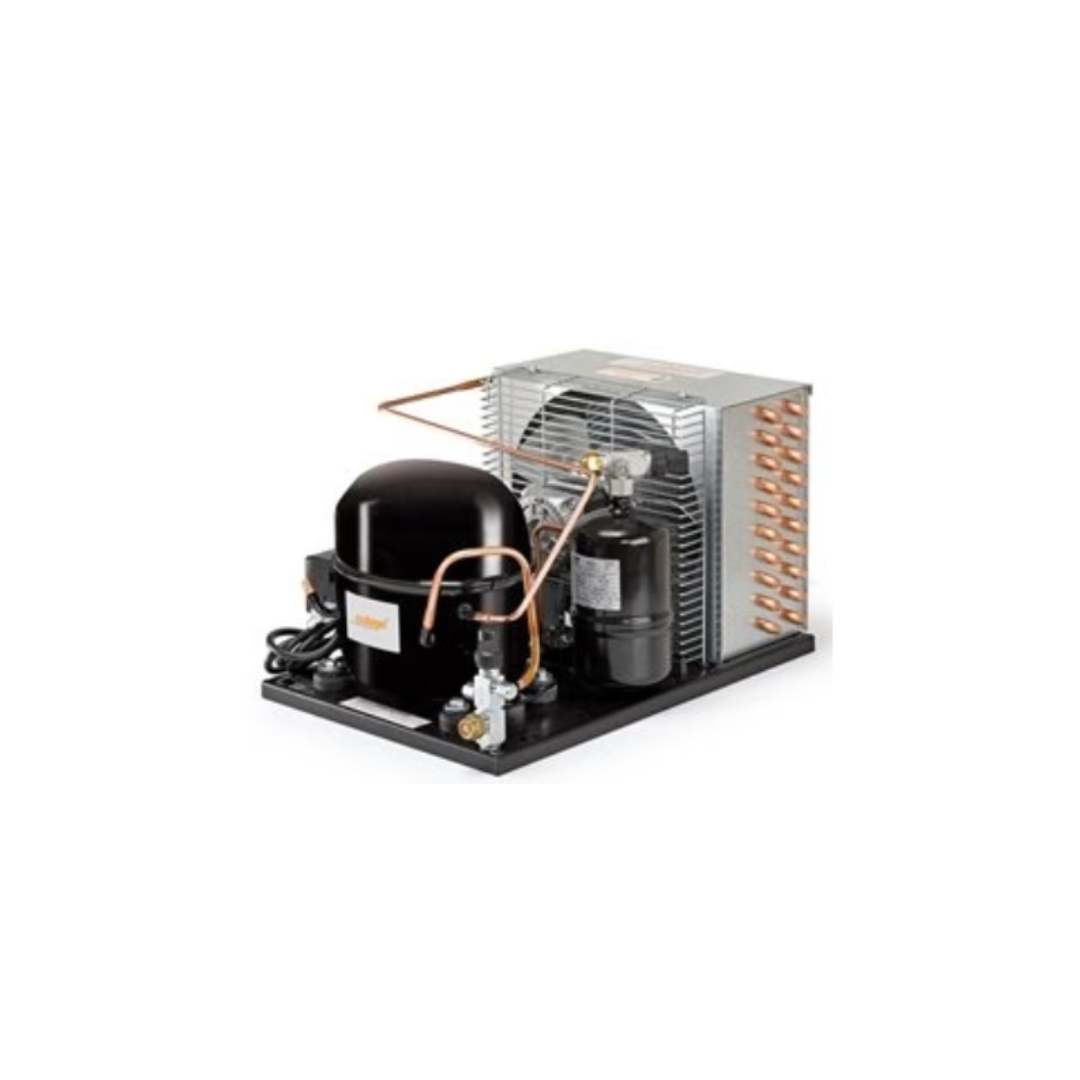

Cubigel condensing unit CMX21TB (R404a) 1 HP Made in Spain

The Cubigel CMX21TB Condensing Unit is a high-performance, medium and high back pressure (MHBP) refrigeration solution designed for reliable operation in demanding environments. Built with premium components and advanced engineering from Spain, this unit ensures efficiency, durability, and ease of installation.

Key Features

• Application Range: Suitable for medium and positive temperature applications.
• Efficient Performance: Provides up to 1531 W cooling capacity at -10°C evaporating temperature.
• Versatile Use: Ideal for refrigerated display cases, small cold rooms, and commercial refrigeration systems.
• Durable Design: Operates reliably in tropical climates up to 43°C ambient temperature.
• Compact & Easy Installation: Designed with space efficiency and user-friendly connections.
• Quality Build: Equipped with a CSR motor for stable performance and long service life.

Technical Specifications

• Model: Cubigel CMX21TB

• Refrigerant: R404A

• Horsepower: 1 HP

• Cooling Capacity:

  • -25°C → 847 W

  • -23.3°C → 1056 W

  • -20°C → 1160 W

  • -15°C → 1265 W

  • -10°C → 1531 W

  • -5°C → 1798 W

  • 5°C → 2445 W

  • 7.2°C → 2603 W

  • 10°C → 2812 W

• Displacement: 20.72 cm³
• Power Supply: 220-240V / 50Hz / Single Phase
• Motor Type: CSR
• Weight: 36 kg
• Maximum Ambient Temperature: 43°C
• Connections: Suction 3/8" | Discharge 3/8"
• Net Dimensions (WxDxH): 455 x 500 x 440 mm

Why Choose Cubigel CMX21TB?

✅ Trusted Spanish engineering and manufacturing
✅ Designed for energy-efficient cooling
✅ Compact and durable for commercial refrigeration needs
✅ Reliable operation in tropical conditions
